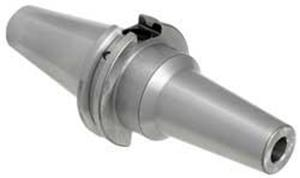

CAT40 x 5/16 Inch Inside Diameter x 5 Inch Length CoolBLAST Holder
- Item Code: 29018B
- Brand: Techniks
- Unit Size: 1
Description
CoolBLAST coolant ports sprays coolant thru-the-bore right on the cut, even at high RPM's, for maximum feed rates. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Nose Diameter (in) | 0.79 |
|---|---|
| Nose Diameter (mm) | 20.1 |
| Collet Series | N/A |
| Material | H13 Steel |
| Overall Diameter (in) | 2.5 |
| Shank Range (mm) | Exact Size |
| Unit of Tool | Inch |
| Mount | CAT40 |
| Style | CoolBLAST |
| Body Diameter (mm) | 26.92 |
| Gage Length (in) | 5 |
| Gage Length-Face Contact (in) | 4.88 |
| Overall Length (in) | 7.69 |
| Overall Length (mm) | 195.25 |
| Type | ShrinkFIT Tool Holder |
| Shank Range (in) | Exact Size |
| Gage Length-Face Contact (mm) | 123.83 |
| Overall Diameter (mm) | 63.5 |
| Shank Size (in) | 0.3125 |
| Shank Size (mm) | 7.94 |
| Body Diameter (in) | 1.06 |
| Brand | Techniks |
| Gage Length (mm) | 127 |
