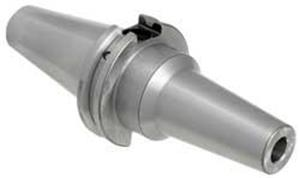

CAT40 x 1/4 Inch Inside Diameter x 3-3/4 Inch Length CoolFLEX Holder
- Item Code: 29021F
- Brand: Techniks
- Unit Size: 1
Description
CoolFLEX holders allow for coolant-thru the spindle or flange. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Overall Length (in) | 6.44 |
|---|---|
| Mount | CAT40 |
| Collet Series | N/A |
| Gage Length (in) | 3.75 |
| Gage Length (mm) | 95.3 |
| Gage Length-Face Contact (mm) | 92.13 |
| Material | H13 Steel |
| Unit of Tool | Inch |
| Overall Diameter (mm) | 63.5 |
| Shank Size (mm) | 9.53 |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 3.63 |
| Nose Diameter (mm) | 23.9 |
| Style | CoolFLEX |
| Overall Length (mm) | 163.55 |
| Body Diameter (in) | 1.26 |
| Shank Size (in) | 0.375 |
| Body Diameter (mm) | 32 |
| Nose Diameter (in) | 0.94 |
| Overall Diameter (in) | 2.5 |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Type | ShrinkFIT Tool Holder |
