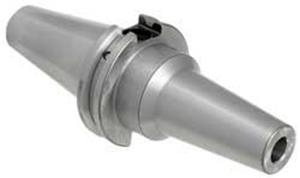

CAT40 x 1/2 Inch Inside Diameter x 5 Inch Length Precision ShrinkFIT Holder
- Item Code: 29029-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Gage Length (in) | 5 |
|---|---|
| Gage Length-Face Contact (mm) | 123.83 |
| Body Diameter (mm) | 34.8 |
| Gage Length-Face Contact (in) | 4.88 |
| Overall Length (in) | 7.69 |
| Overall Diameter (in) | 2.5 |
| Style | Single-Ended |
| Unit of Tool | Inch |
| Brand | Techniks |
| Nose Diameter (mm) | 27.9 |
| Overall Diameter (mm) | 63.5 |
| Body Diameter (in) | 1.37 |
| Gage Length (mm) | 127 |
| Collet Series | N/A |
| Material | H13 Steel |
| Shank Range (mm) | Exact Size |
| Overall Length (mm) | 195.25 |
| Shank Range (in) | Exact Size |
| Mount | CAT40 |
| Nose Diameter (in) | 1.1 |
| Shank Size (in) | 0.5 |
| Shank Size (mm) | 12.7 |
| Type | ShrinkFIT Tool Holder |
