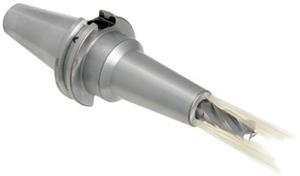

CAT50 x 1/2 Inch Inside Diameter x 6 Inch Length CoolBLAST Holder
- Item Code: 29060-6B
- Brand: Techniks
- Unit Size: 1
Description
CoolBLAST coolant ports sprays coolant thru-the-bore right on the cut, even at high RPM's, for maximum feed rates. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Brand | Techniks |
|---|---|
| Gage Length (mm) | 152.4 |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Type | ShrinkFIT Tool Holder |
| Nose Diameter (mm) | 27.9 |
| Gage Length-Face Contact (mm) | 148.95 |
| Overall Length (mm) | 254 |
| Collet Series | N/A |
| Material | H13 Steel |
| Nose Diameter (in) | 1.1 |
| Shank Size (mm) | 12.7 |
| Body Diameter (mm) | 34.04 |
| Overall Length (in) | 10 |
| Shank Size (in) | 0.5 |
| Gage Length (in) | 6 |
| Mount | CAT50 |
| Style | CoolBLAST |
| Unit of Tool | Inch |
| Body Diameter (in) | 1.34 |
| Gage Length-Face Contact (in) | 5.86 |
