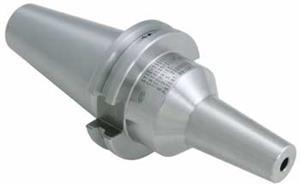

CAT40 x 6mm Inside Diameter x 100mm ShrinkFIT Holder
- Item Code: 29204
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Body Diameter (in) | 0.736 |
|---|---|
| Body Diameter (mm) | 18.7 |
| Nose Diameter (in) | 0.394 |
| Unit of Tool | Metric |
| Gage Length-Face Contact (mm) | 96.83 |
| Nose Diameter (mm) | 10 |
| Gage Length (mm) | 100 |
| Overall Diameter (in) | 2.5 |
| Overall Length (in) | 6.63 |
| Overall Length (mm) | 168.25 |
| Shank Range (in) | Exact Size |
| Shank Size (mm) | 4 |
| Brand | Techniks |
| Gage Length (in) | 3.94 |
| Overall Diameter (mm) | 63.5 |
| Material | H13 Steel |
| Shank Range (mm) | Exact Size |
| Type | ShrinkFIT Tool Holder |
| Style | Single-Ended |
| Collet Series | N/A |
| Gage Length-Face Contact (in) | 3.82 |
| Mount | CAT40 |
| Shank Size (in) | 0.1575 |
