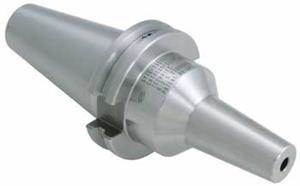

CAT40 x 12mm Inside Diameter x 100mm ShrinkFIT Holder
- Item Code: 29220-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Body Diameter (in) | 1.26 |
|---|---|
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Metric |
| Nose Diameter (mm) | 24 |
| Style | Single-Ended |
| Body Diameter (mm) | 32 |
| Type | ShrinkFIT Tool Holder |
| Gage Length-Face Contact (mm) | 96.83 |
| Overall Diameter (in) | 2.5 |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Shank Size (mm) | 12 |
| Collet Series | N/A |
| Gage Length-Face Contact (in) | 3.82 |
| Material | H13 Steel |
| Mount | CAT40 |
| Nose Diameter (in) | 0.945 |
| Gage Length (in) | 3.94 |
| Gage Length (mm) | 100 |
| Overall Length (in) | 6.63 |
| Overall Length (mm) | 168.25 |
| Brand | Techniks |
| Shank Size (in) | 0.4724 |
