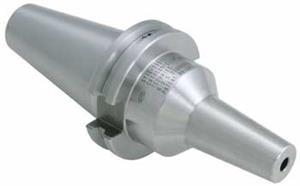

CAT40 x 14mm Inside Diameter x 152.4mm ShrinkFIT Holder
- Item Code: 29228
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Nose Diameter (mm) | 27 |
|---|---|
| Brand | Techniks |
| Gage Length (mm) | 152.4 |
| Gage Length-Face Contact (in) | 5.88 |
| Overall Diameter (mm) | 63.5 |
| Overall Length (in) | 8.69 |
| Shank Size (in) | 0.5512 |
| Body Diameter (mm) | 34 |
| Mount | CAT40 |
| Shank Size (mm) | 14 |
| Type | ShrinkFIT Tool Holder |
| Unit of Tool | Metric |
| Gage Length (in) | 6 |
| Nose Diameter (in) | 1.063 |
| Overall Diameter (in) | 2.5 |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Body Diameter (in) | 1.339 |
| Collet Series | N/A |
| Gage Length-Face Contact (mm) | 149.23 |
| Material | H13 Steel |
| Overall Length (mm) | 220.65 |
| Style | Single-Ended |
