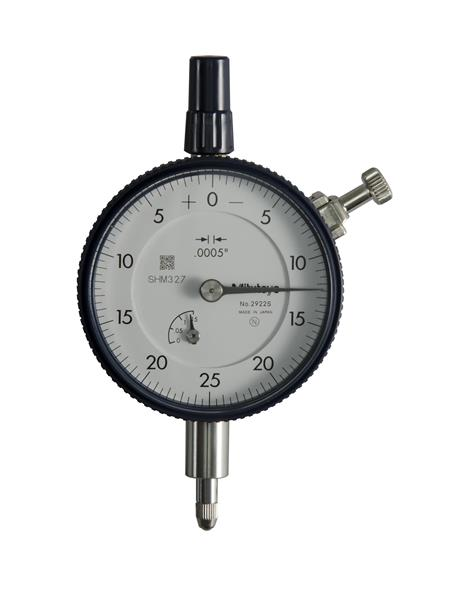

.0005 Inch, .125 Inch/(.05 Inch per rev), Dial Indicator,0-25-0, Flat Back, 3/8 Inch stem, Series 2

  • Item Code: 2922SB
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The revolutionary stem-bush design for trouble free stem clamping and longer clamping range.
    • No through screw-hole on the frame for high dust-resistance.
    • Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-scrw mounting fo r incresing impact resistance.

Tech Specs

Back To Top
Accuracy .0002 in.
Dial Face Reading 0-25-0
Range 0 - .125 in.
Range Per Revolution .01 In
Face Color White
Primary Measuring Range Lower - Inch 0 in.
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Individual
Stem Diameter Measurement 3/8 in.
Back Type Lug
Measuring Force =1.8N
Primary Measuring Range Upper - Inch .125 in.
Resolution or Graduation .0005 in.
