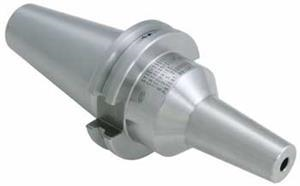

CAT40 x 16mm Inside Diameter x 160mm Precision ShrinkFIT Toolholder
- Item Code: 29234-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Body Diameter (in) | 1.339 |
|---|---|
| Gage Length-Face Contact (in) | 6.18 |
| Gage Length-Face Contact (mm) | 156.83 |
| Overall Length (in) | 9 |
| Overall Length (mm) | 228.25 |
| Type | ShrinkFIT Tool Holder |
| Unit of Tool | Metric |
| Brand | Techniks |
| Gage Length (mm) | 160 |
| Overall Diameter (mm) | 63.5 |
| Shank Size (mm) | 16 |
| Gage Length (in) | 6.3 |
| Mount | CAT40 |
| Body Diameter (mm) | 34 |
| Nose Diameter (in) | 1.063 |
| Nose Diameter (mm) | 27 |
| Overall Diameter (in) | 2.5 |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Collet Series | N/A |
| Material | H13 Steel |
| Shank Size (in) | 0.6299 |
| Style | Single-Ended |
