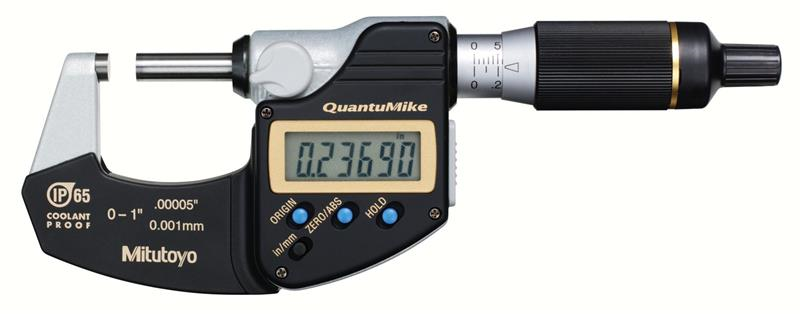

0 to 1 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-180
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Faster measurement with 2mm per revolution instead of the standard 0.5mm.
    • A patened ratchet thimble mechanism helps ensure repeatability.
    • A function lock helps prevent error.

Tech Specs

Back To Top
Accuracy ±.00005 In
Contact Point Flatness .000012 In
Data Output Y
Data Output Cable - 40 inch 05CZA662
IP Rating IP65
Resolution or Graduation .00005 In
Contact Point Diameter 6.35mm
Spindle Lock Y
Case Material Plastic Case
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Spindle Face Flat
Clutch Ratchet Thimble
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Range 0 - 1 In/0 - 25.4mm
Thimble Diameter Measurement 19.3mm
Brand Mitutoyo
Case Part Number 04MAA213
Data Output Cable - 80 inch 05CZA663
Mechanical or Digital Digimatic
