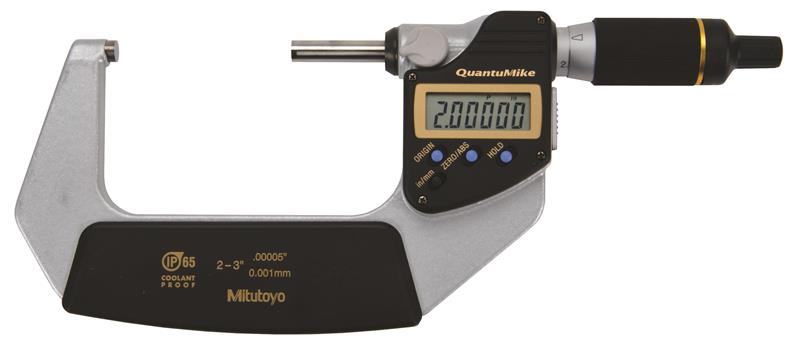

2 Inch - 3 Inch/50.8mm-76.2mm, 0.00005 In/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble, With Standard

  • Item Code: 293-182
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Faster measurement with 2mm per revolution instead of the standard 0.5mm.
    • A patened ratchet thimble mechanism helps ensure repeatability.
    • A function lock helps prevent error.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 50.8mm
Contact Point Diameter 6.35mm
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 3 In
Spindle Lock Y
Brand Mitutoyo
Range 2 - 3 In/50.8 - 76.2mm
Contact Point Flatness .000012 In
Data Output Cable - 40 inch 05CZA662
Accuracy ±.0001 In
Micrometer Head Travel n
Spindle Face Flat
Clutch Ratchet Thimble
Data Output Y
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Inch 2 In
Case Material Plastic Case
Case Part Number 04MZA151
Resolution or Graduation .00005 In
Individual or Set Individual
Primary Measuring Range Upper - Metric 76.2mm
Thimble Diameter Measurement 19.3mm
IP Rating IP65
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
