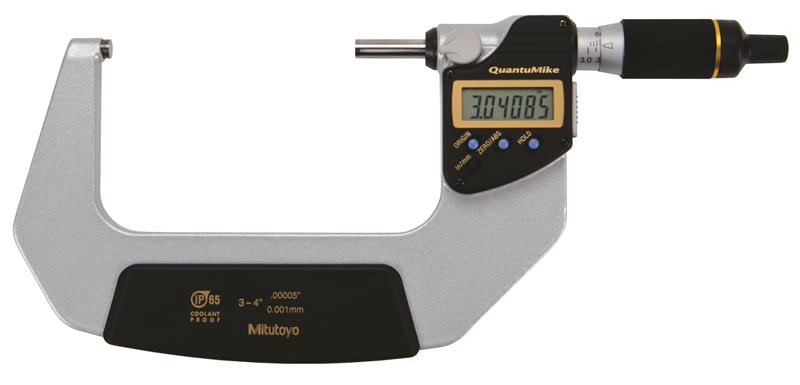

3 Inch - 4 Inch/76.2mm-101.6mm, 0.00005 Inch/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble, With Standard

  • Item Code: 293-183
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Faster measurement with 2mm per revolution instead of the standard 0.5mm.
    • A patened ratchet thimble mechanism helps ensure repeatability.
    • A function lock helps prevent error.

Tech Specs

Back To Top
Contact Point Flatness .000012 In
Primary Measuring Range Upper - Metric 101.6mm
Data Output Cable - 40 inch 05CZA662
Brand Mitutoyo
Mechanical or Digital Digimatic
Spindle Lock Y
IP Rating IP65
Thimble Diameter Measurement 19.3mm
Case Part Number 04MZA152
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Metric 76.2mm
Range 3 - 4 In/76.2 - 101.6mm
Case Material Plastic Case
Individual or Set Individual
Micrometer Head Travel n
Primary Measuring Range Upper - Inch 4 In
Resolution or Graduation .00005 In
Spindle Face Flat
Accuracy ±.0001 In
Clutch Ratchet Thimble
Data Output Y
