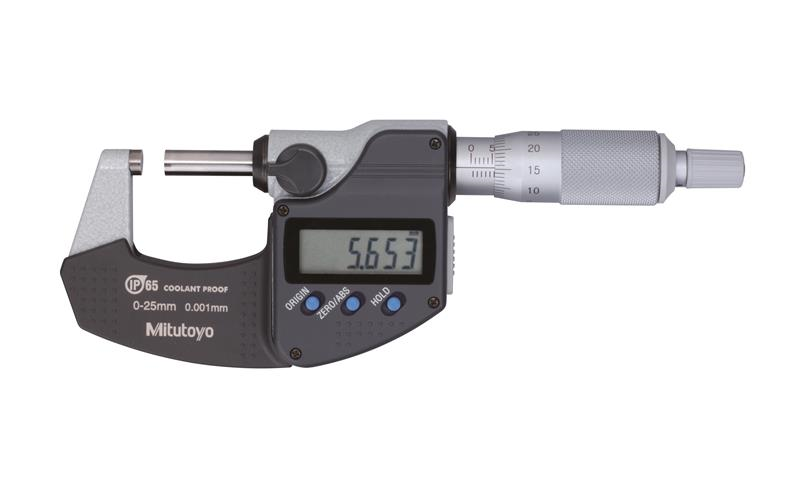

0-25mm, 0.001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 293-230-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Accuracy ±1µm
Data Output Cable - 80 inch 05CZA663
Case Material Plastic Case
Parallelism 1µm
Spindle Face Flat
Finish Enamel
Mechanical or Digital Digimatic
Spindle Lock Y
Individual or Set Individual
IP Rating IP65
Resolution or Graduation 0.001mm
Contact Point Flatness 0.3µm
Data Output Cable - 40 inch 05CZA662
Range 0 - 25mm
Brand Mitutoyo
Case Part Number 04MAA213
Primary (Outside Diameter) Contact Point Material Carbide
Data Output Y
Clutch Ratchet Stop
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25mm
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
