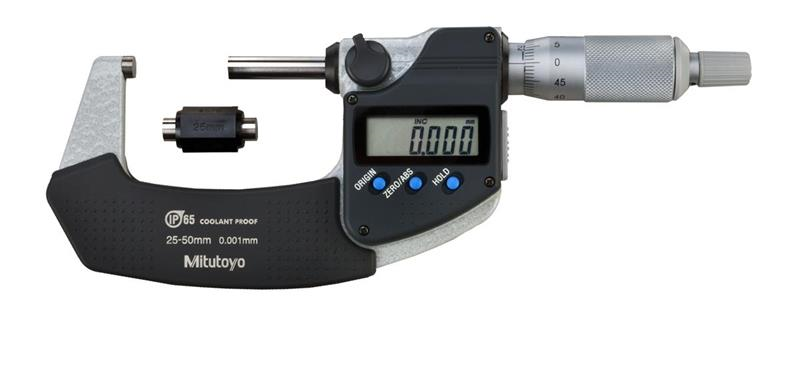

25-50mm, .001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard
- Item Code: 293-231-30
- Brand: Mitutoyo
- Unit Size: 1
- Measurement data output function is available with a water-resistant connection cable.
- Auto power ON/OFF function.
- Certificate of inspection is included.
| Case Material |
Plastic Case |
| Parallelism |
1µm |
| Primary Measuring Range Upper - Metric |
50mm |
| Spindle Face |
Flat |
| Contact Point Flatness |
0.3µm |
| Individual or Set |
Individual |
| IP Rating |
IP65 |
| Primary Measuring Range Lower - Metric |
25mm |
| Range |
25 - 50mm |
| Resolution or Graduation |
0.001mm |
| Contact Point Diameter |
6.35mm |
| Accuracy |
±1µm |
| Finish |
Enamel |
| Data Output |
Y |
| Data Output Cable - 80 inch |
05CZA663 |
| Thimble Diameter Measurement |
18mm |
| Brand |
Mitutoyo |
| Case Part Number |
04MAA213 |
| Clutch |
Ratchet Stop |
| Mechanical or Digital |
Digimatic |
| Spindle Lock |
Y |
| Primary (Outside Diameter) Contact Point Material |
Carbide |
| Data Output Cable - 40 inch |
05CZA662 |
