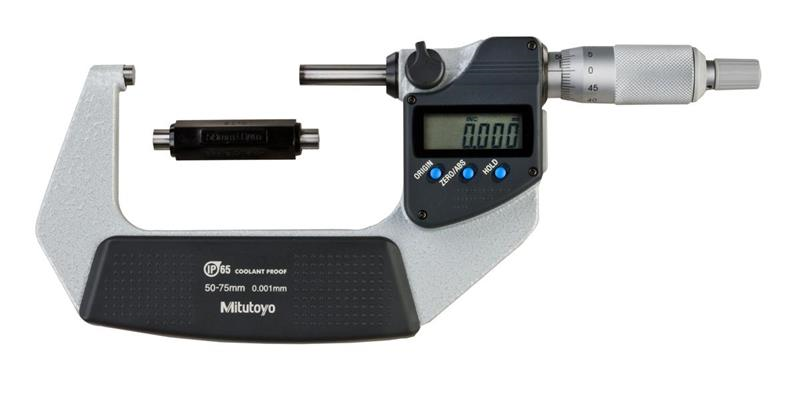

50-75mm, .001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard

  • Item Code: 293-232-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 50mm
Range 50 - 75mm
Contact Point Flatness 0.3µm
Individual or Set Individual
IP Rating IP65
Resolution or Graduation 0.001mm
Case Material Plastic Case
Parallelism 1µm
Spindle Face Flat
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy ±2µm
Case Part Number 04MZA151
Clutch Ratchet Stop
Primary Measuring Range Upper - Metric 75mm
Finish Enamel
Spindle Lock Y
Brand Mitutoyo
Mechanical or Digital Digimatic
Data Output Y
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
