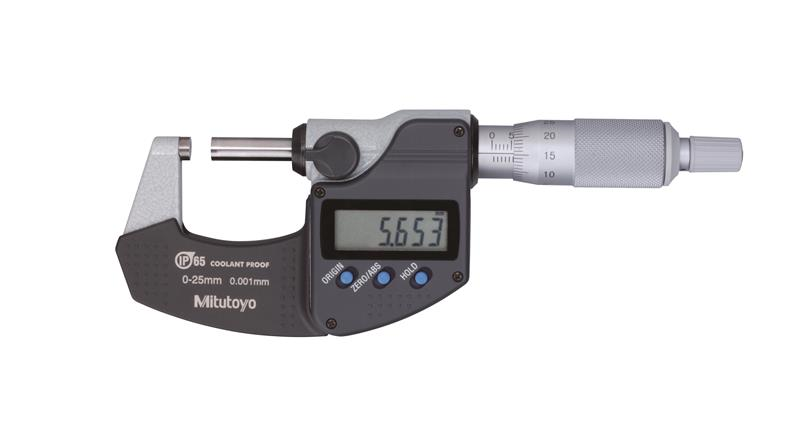

0-25mm, 0.001mm, IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop

  • Item Code: 293-240-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
IP Rating IP65
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Parallelism 1µm
Contact Point Flatness 0.3µm
Individual or Set Individual
Range 0 - 25mm
Brand Mitutoyo
Case Part Number 04MAA213
Primary (Outside Diameter) Contact Point Material Carbide
Data Output N
Finish Enamel
Mechanical or Digital Digimatic
Spindle Lock Y
Accuracy ±1µm
Clutch Ratchet Stop
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25mm
Contact Point Diameter 6.35mm
Resolution or Graduation 0.001mm
Spindle Face Flat
