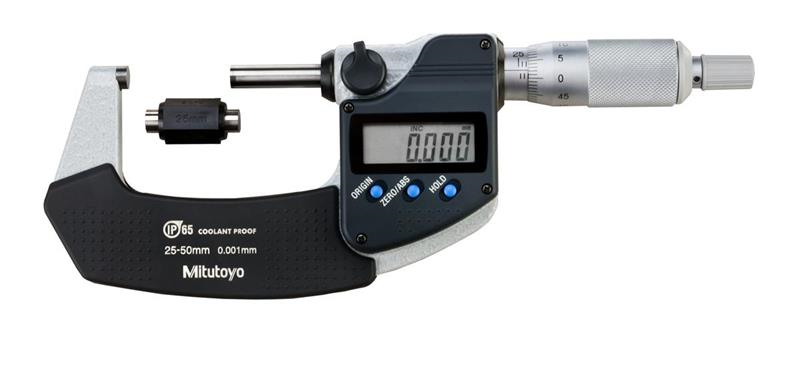

25-50mm, .001mm, IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop

  • Item Code: 293-241-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Contact Point Flatness 0.3µm
Parallelism 1µm
Primary Measuring Range Upper - Metric 50mm
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
Case Part Number 04MAA214
Clutch Ratchet Stop
IP Rating IP65
Primary Measuring Range Lower - Metric 25mm
Resolution or Graduation 0.001mm
Accuracy ±1µm
Finish Enamel
Individual or Set Individual
Range 25 - 50mm
Brand Mitutoyo
Data Output N
Mechanical or Digital Digimatic
Spindle Lock Y
