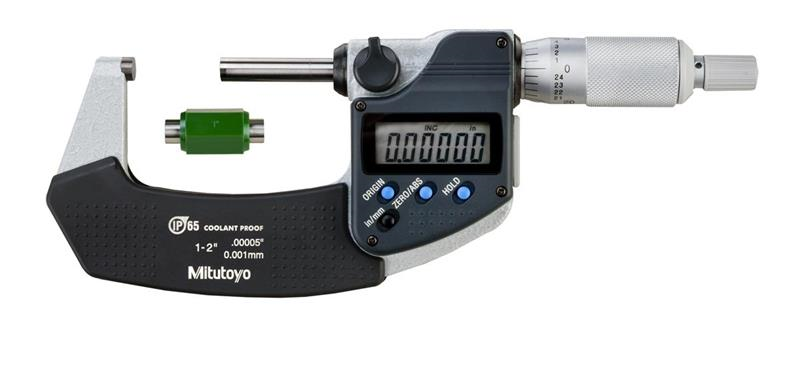

1-2 Inch/25.4-50.8mm, 0.00005 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard

  • Item Code: 293-331-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Brand Mitutoyo
Mechanical or Digital Digimatic
Finish Enamel
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 2 In
Spindle Lock Y
Data Output Cable - 40 inch 05CZA662
Accuracy ±.00005 In
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 1 In
Primary Measuring Range Upper - Metric 50.8mm
Case Material Plastic Case
Contact Point Flatness 0.000012 In
Individual or Set Individual
Primary Measuring Range Lower - Metric 25.4mm
Resolution or Graduation .00005 In
Spindle Face Flat
Case Part Number 04MAA214
IP Rating IP65
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Range 1 - 2 In/25.4 - 50.8mm
Thimble Diameter Measurement 18mm
Data Output Y
