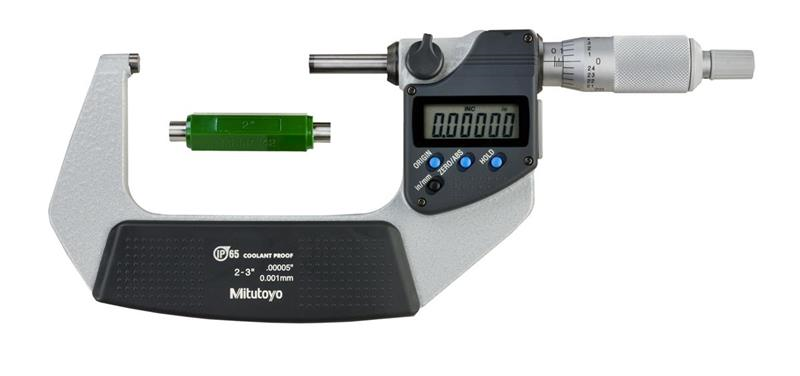

2-3 Inch/50.8-76.2mm, .00005 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 293-332-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Primary Measuring Range Upper - Metric 76.2mm
Data Output Y
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Contact Point Diameter 6.35mm
Finish Enamel
Spindle Lock Y
Individual or Set Individual
Parallelism .00008 In
Primary Measuring Range Lower - Inch 2 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Range 2 - 3 In/50.8 - 76.2mm
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 50.8mm
Accuracy ±.00005 In
Case Material Plastic Case
Case Part Number 04MZA151
Clutch Ratchet Stop
Contact Point Flatness 0.000012 In
Resolution or Graduation .00005 In
Spindle Face Flat
IP Rating IP65
Primary Measuring Range Upper - Inch 3 In
