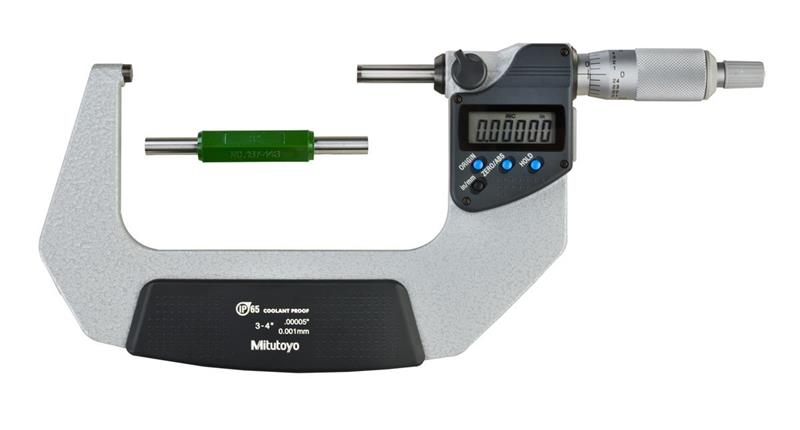

3-4 Inch/76.2-101.6mm, 0.00005 In/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard

  • Item Code: 293-333-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Brand Mitutoyo
Case Part Number 04MZA152
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Range 3 - 4 In/76.2 - 101.6mm
Accuracy ±.0001 In
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 4 In
Clutch Ratchet Stop
Individual or Set Individual
IP Rating IP65
Contact Point Flatness 0.000012 In
Data Output Y
Primary Measuring Range Lower - Metric 76.2mm
Thimble Diameter Measurement 18mm
Finish Enamel
Case Material Plastic Case
Data Output Cable - 80 inch 05CZA663
Resolution or Graduation .00005 In
Spindle Face Flat
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Parallelism .00008 In
Primary Measuring Range Upper - Metric 101.6mm
Spindle Lock Y
