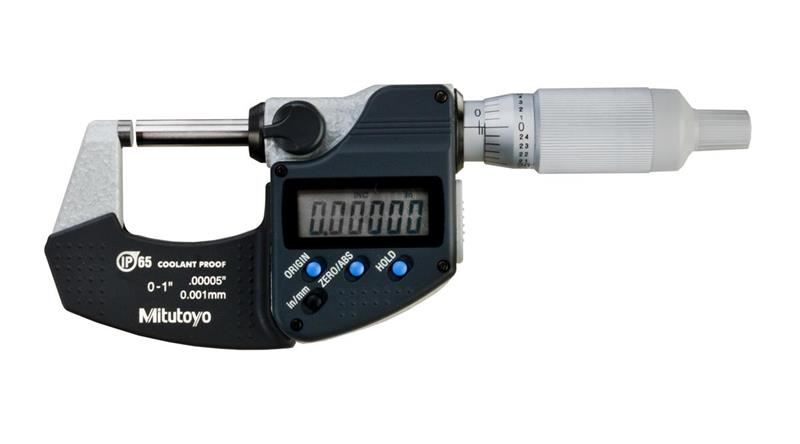

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble

  • Item Code: 293-334-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Contact Point Diameter 6.35mm
Finish Enamel
Spindle Lock Y
Accuracy ±.00005 In
Data Output Y
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Spindle Face Flat
Range 0 - 1 In/0 - 25.4mm
IP Rating IP65
Primary Measuring Range Upper - Metric 25.4mm
Resolution or Graduation .00005 In
Contact Point Flatness 0.000012 In
Brand Mitutoyo
Case Part Number 04MAA213
Mechanical or Digital Digimatic
Clutch Ratchet Thimble
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Inch 1 In
