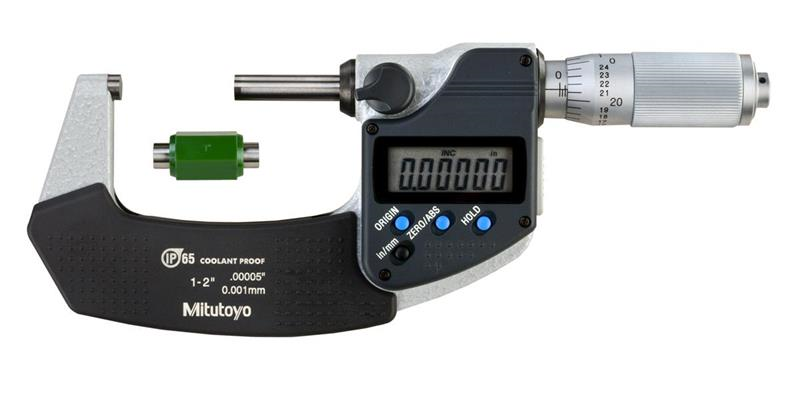

1-2 Inch/25.4-50.8mm, 0.00005 In/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Friction, With Standard

  • Item Code: 293-336-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 04MAA214
Individual or Set Individual
IP Rating IP65
Resolution or Graduation .00005 In
Clutch Friction Thimble
Data Output Cable - 40 inch 05CZA662
Case Material Plastic Case
Primary Measuring Range Upper - Inch 2 In
Spindle Face Flat
Accuracy ±.00005 In
Primary Measuring Range Upper - Metric 50.8mm
Finish Enamel
Spindle Lock Y
Contact Point Flatness 0.000012 In
Data Output Y
Primary Measuring Range Lower - Metric 25.4mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In/25.4mm - 50.8mm
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
