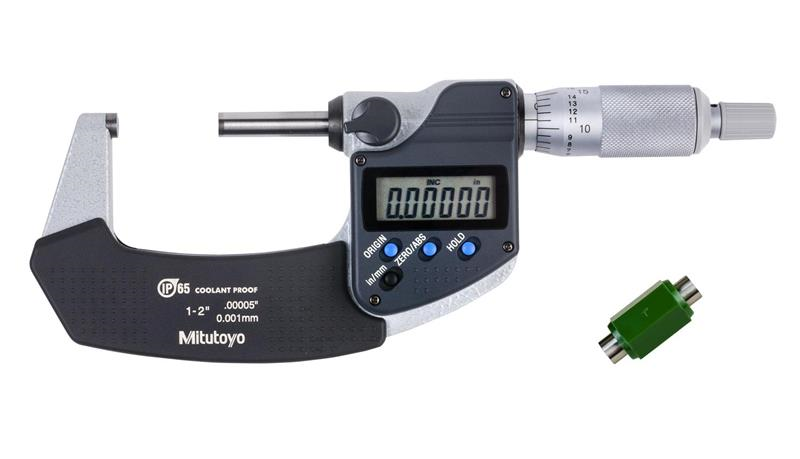

1 to 2 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-341-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Contact Point Flatness 0.000012 In
Primary Measuring Range Upper - Metric 50.8mm
Data Output N
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 2 In
Spindle Lock Y
Brand Mitutoyo
Finish Enamel
Individual or Set Individual
Mechanical or Digital Digimatic
Accuracy ±.00005 In
Case Material Plastic Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Metric 25.4mm
Resolution or Graduation .00005 In
Spindle Face Flat
Contact Point Diameter 6.35mm
Range 1 - 2 In/25.4 - 50.8mm
Thimble Diameter Measurement 18mm
Case Part Number 04MAA214
IP Rating IP65
Primary Measuring Range Lower - Inch 1 In
