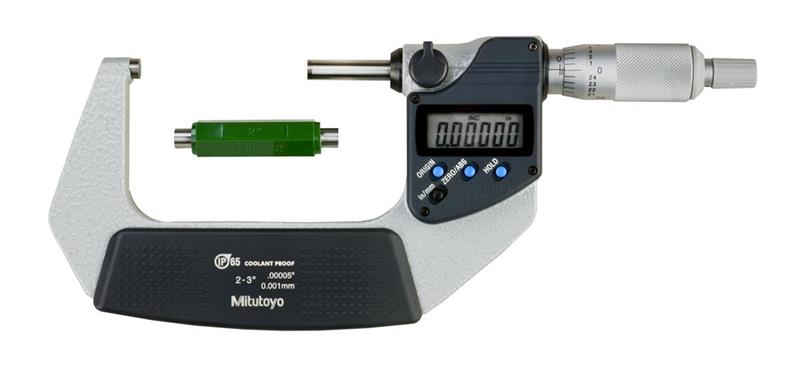

2 to 3 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-342-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 04MZA151
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 50.8mm
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 3 In
Primary Measuring Range Upper - Metric 76.2mm
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 2 In
Accuracy ±.00005 In
Contact Point Flatness 0.000012 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Range 2 - 3 In/50.8 - 76.2mm
Resolution or Graduation .00005 In
Spindle Face Flat
Finish Enamel
Individual or Set Individual
IP Rating IP65
Data Output N
Mechanical or Digital Digimatic
Parallelism .00008 In
Spindle Lock Y
