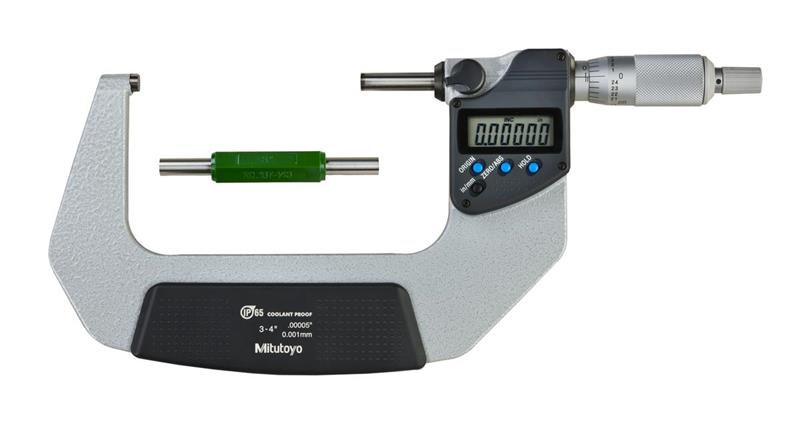

3 to 4 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-343-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Accuracy ±.0001 In
Case Part Number 04MZA152
Parallelism .00008 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 4 In
IP Rating IP65
Primary Measuring Range Lower - Inch 3 In
Resolution or Graduation .00005 In
Contact Point Flatness 0.000012 In
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Metric 76.2mm
Primary Measuring Range Upper - Metric 101.6mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Flat
Brand Mitutoyo
Data Output N
Mechanical or Digital Digimatic
Range 3 - 4 In/76.2 - 101.6mm
Finish Enamel
Individual or Set Individual
