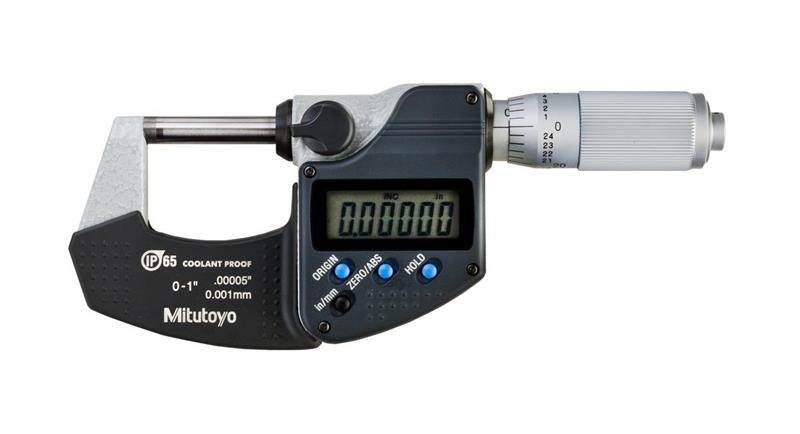

0 to 1 Inch Range, 0.0001 Inch Resolution, Standard Throat, None Electronic Outside Micrometer

  • Item Code: 293-348-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Coolant Proof, IP-65
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Accuracy ±.00005 In
Thimble Diameter Measurement 18mm
Range 0 - 1 In/0 - 25.4mm
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Contact Point Diameter 6.35mm
IP Rating IP65
Primary Measuring Range Upper - Metric 25.4mm
Resolution or Graduation .00005 In
Case Material Plastic Case
Contact Point Flatness 0.000012 In
Primary Measuring Range Lower - Inch 0 In
Spindle Face Flat
Brand Mitutoyo
Case Part Number 04MAA213
Clutch Friction Thimble
Data Output N
Mechanical or Digital Digimatic
Spindle Lock Y
Finish Enamel
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
