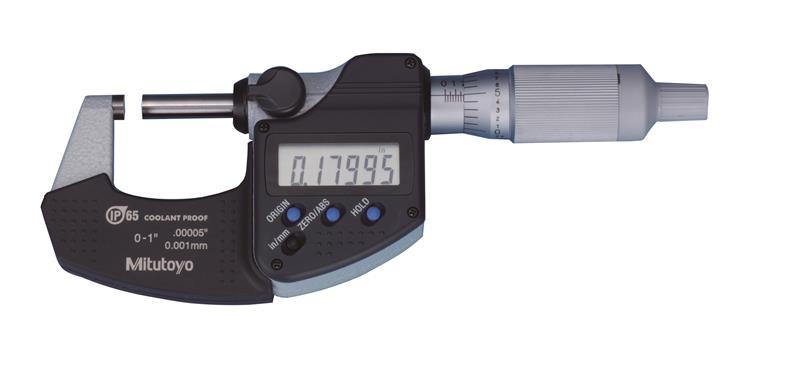

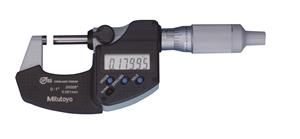

0-1 Inch/0-25.4mm, .0001 Inch/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble

  • Item Code: 293-349-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Brand Mitutoyo
Case Part Number 04MAA213
Mechanical or Digital Digimatic
Parallelism .00004 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25.4mm
Clutch Friction Thimble
Finish Enamel
Range 0 - 1 In/0 - 25.4mm
Spindle Lock Y
Data Output N
IP Rating IP65
Case Material Plastic Case
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
Contact Point Flatness 0.000012 In
