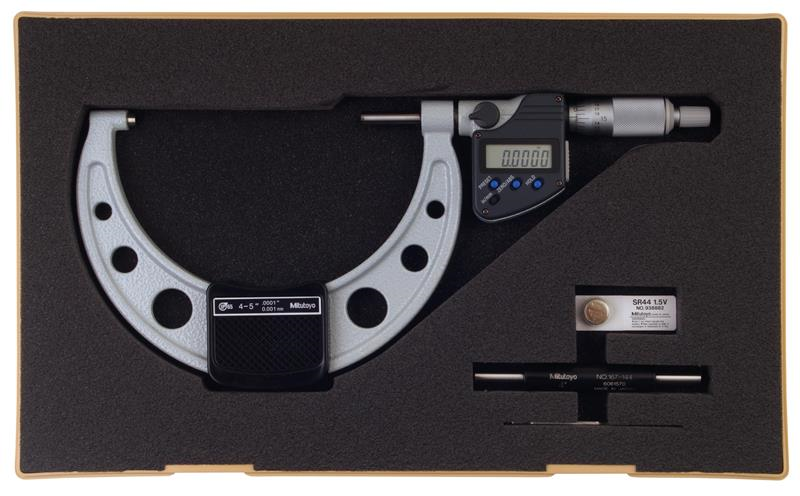

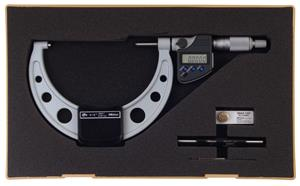

4 to 5 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 04MZA170
Finish Enamel
Range 4 - 5 In/101.6 - 127mm
Contact Point Flatness 0.000012 In
Parallelism .00012 In
Primary Measuring Range Upper - Metric 127mm
Accuracy ±.0001 In
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Inch 4 In
Primary Measuring Range Lower - Metric 101.6mm
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Data Output Cable - 80 inch 05CZA663
Individual or Set Individual
IP Rating IP65
Primary (Outside Diameter) Contact Point Material Carbide
Data Output Y
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 5 In
Spindle Lock Y
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Spindle Face Flat
