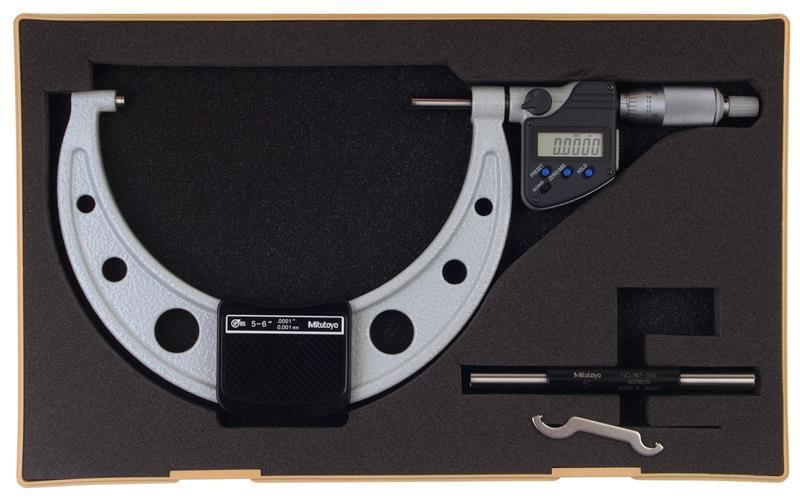

5 to 6 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 04MZA172
Primary Measuring Range Lower - Metric 127mm
Range 5 - 6 In/127 - 152.4mm
Clutch Ratchet Stop
Contact Point Flatness 0.000012 In
Data Output Y
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 6 In
Individual or Set Individual
IP Rating IP65
Accuracy ±.0001 In
Contact Point Diameter 6.35mm
Finish Enamel
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Primary Measuring Range Lower - Inch 5 In
Resolution or Graduation .0001 In
Spindle Face Flat
Data Output Cable - 40 inch 05CZA662
Parallelism .00012 In
Primary Measuring Range Upper - Metric 152.4mm
Spindle Lock Y
