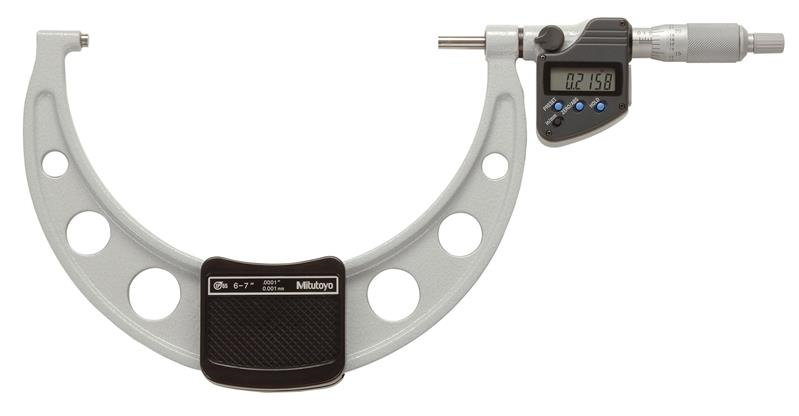

6-7 Inch/152.4-177.8mm, .0001 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 293-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 475480
Primary Measuring Range Lower - Metric 152.4mm
Primary Measuring Range Upper - Metric 177.8mm
Clutch Ratchet Stop
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 6 In
Accuracy ±.00015 In
Contact Point Flatness 0.000012 In
Thimble Diameter Measurement 18mm
Data Output Y
IP Rating IP65
Contact Point Diameter 6.35mm
Case Material Plastic Case
Data Output Cable - 80 inch 05CZA663
Resolution or Graduation .0001 In
Spindle Face Flat
Finish Enamel
Individual or Set Individual
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Parallelism .00012 In
Primary Measuring Range Upper - Inch 7 In
Range 6 - 7 In / 152.4 - 177.8mm
Spindle Lock Y
