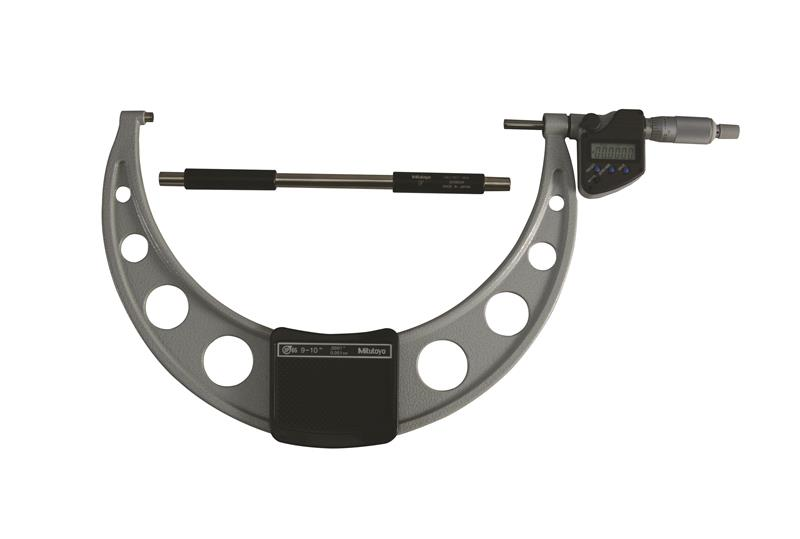

7 to 8 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer

  • Item Code: 293-353-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Primary Measuring Range Upper - Metric 203.2mm
Range 7 - 8 In / 177.8 - 203.2mm
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Clutch Ratchet Stop
Contact Point Flatness 0.000012 In
Resolution or Graduation .0001 In
Spindle Face Flat
Case Part Number 04MZA056
Contact Point Diameter 6.35mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Spindle Lock Y
Thimble Diameter Measurement 18mm
Accuracy ±.00015 In
Parallelism .00012 In
IP Rating IP65
Primary Measuring Range Lower - Metric 177.8mm
Data Output Y
Finish Enamel
Individual or Set Individual
Primary Measuring Range Upper - Inch 8 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 7 In
