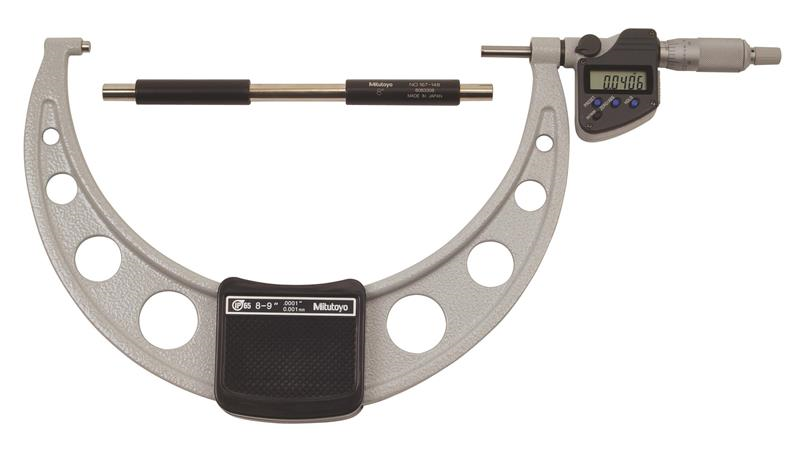

8-9 Inch/203.2-228.6mm, .0001 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 293-354-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 04MZA056
Primary Measuring Range Lower - Metric 203.2
Primary Measuring Range Upper - Metric 228.6mm
Range 8 - 9 In / 203.2 - 228.6mm
Resolution or Graduation .0001 In
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Ratchet Stop
Finish Enamel
Individual or Set Individual
Mechanical or Digital Digimatic
Parallelism .00016 In
Spindle Lock Y
Data Output Y
Data Output Cable - 40 inch 05CZA662
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Inch 9 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Contact Point Flatness 0.000012 In
Spindle Face Flat
Accuracy ±.00015 In
IP Rating IP65
Primary Measuring Range Lower - Inch 8 In
