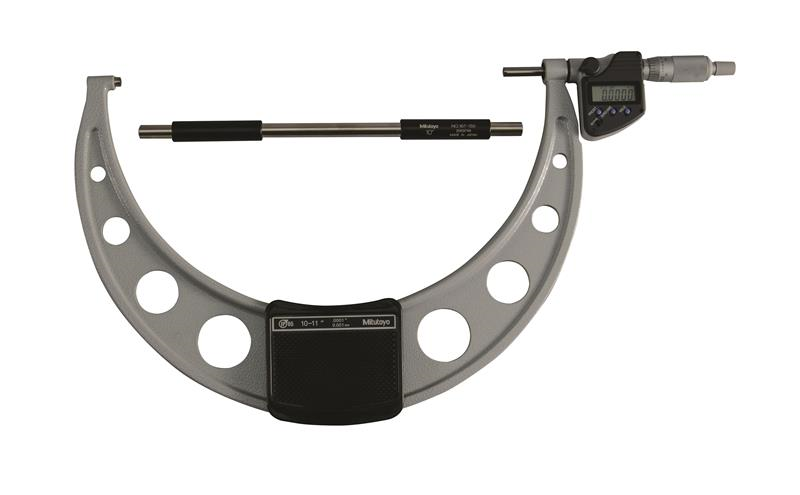

10-11 Inch/254-279.4mm, .0001 Inch/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 293-356-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Case Part Number 475484
Primary Measuring Range Upper - Metric 279.4mm
Accuracy ±.00015 In
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Clutch Ratchet Stop
Contact Point Flatness 0.000012 In
Primary Measuring Range Upper - Inch 11 In
Range 10 - 11 In / 254 - 279.4mm
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Diameter 6.35mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Metric 254mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
IP Rating IP65
Data Output Y
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 10 In
Finish Enamel
Individual or Set Individual
Parallelism .00016 In
