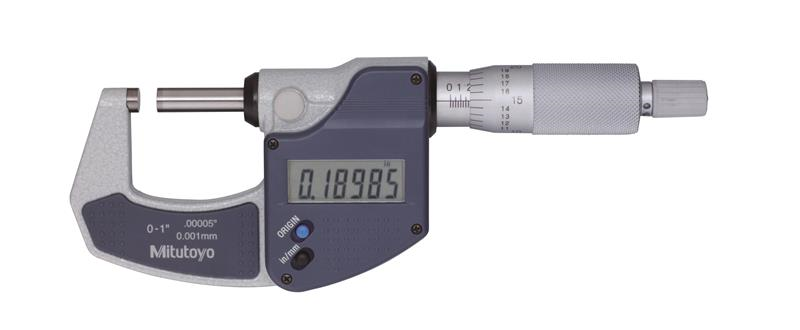

0-1 Inch, 0.00005 Inch, Digimatic Lite Outside Micrometer, No Spindle Clamp, No Output, Ratchet Stop

  • Item Code: 293-831-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provided only with a zero set and in/mm keys.
    • Measurement readout with large characters on the LCD screen.
    • Has a Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Data Output N
Spindle Face Flat
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.0001 In
Individual or Set Individual
Parallelism .00008 In
Resolution or Graduation .00005 In
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Brand Mitutoyo
Case Part Number 04MAA213
Clutch Ratchet Stop
Range 0 - 1 In/0 - 25.4mm
Contact Point Flatness .000012 In
Finish Enamel
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Lock N
