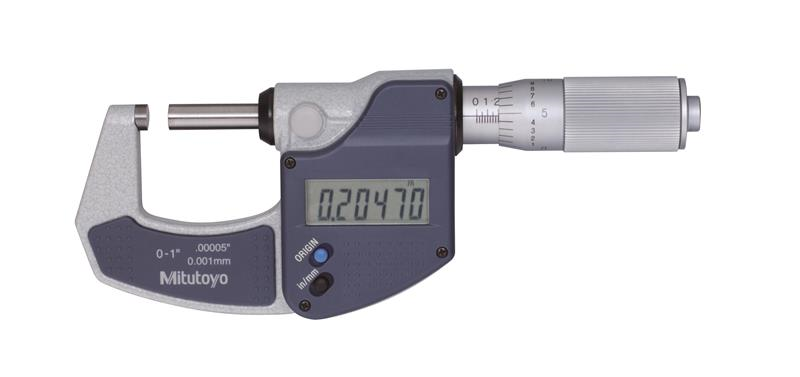

0-1 Inch, 0.00005 Inch, Digimatic Lite Outside Micrometer, No Spindle Clamp, No Output, Friction Thimble

  • Item Code: 293-832-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provided only with a zero set and in/mm keys.
    • Measurement readout with large characters on the LCD screen.
    • Has a Friction Thimble for constant measuring force.

Tech Specs

Back To Top
Accuracy ±.0001 In
Contact Point Flatness .000012 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Case Part Number 04MAA213
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Finish Enamel
Contact Point Diameter 6.35mm
Case Material Plastic Case
Resolution or Graduation .00005 In
Spindle Face Flat
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Spindle Lock N
Clutch Friction Thimble
Data Output N
Mechanical or Digital Digimatic
Parallelism .00008 In
Range 0 - 1 In/0 - 25.4mm
