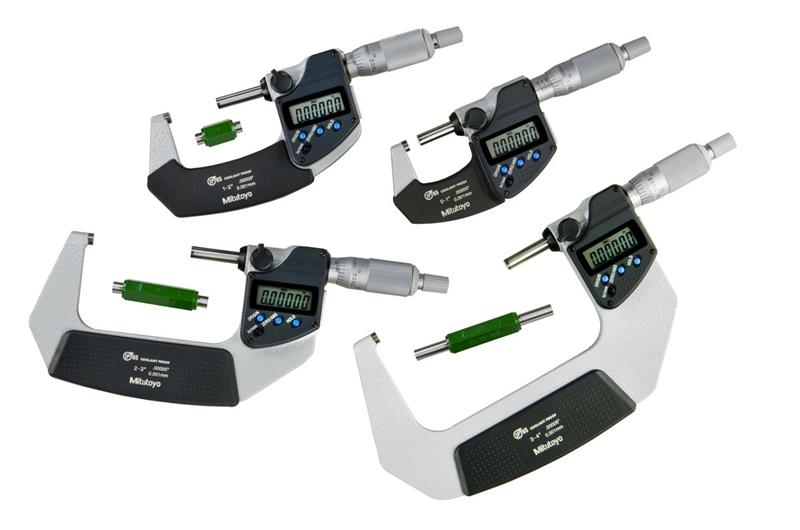

0-4 Inch, 0.00005 Inch, IP65 Digimatic Outside Micrometer Set, 4 Micrometers, 3 Standard Bars, With SPC Data Output, Ratchet Stop

  • Item Code: 293-961-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measurement data output function is available with a water-resistant connection cable.
    • Auto power ON/OFF function.
    • Certificate of inspection is included.

Tech Specs

Back To Top
Pieces Per Set 4
Range 0 - 4 In / 0 - 101.6mm
Contact Point Diameter 6.35mm
Data Output N
Finish Enamel
Mechanical or Digital Digimatic
Spindle Lock N
Thimble Diameter Measurement 18mm
Clutch Ratchet Stop
Contact Point Flatness .000012 In
Parallelism .00008 In
Accuracy ±.00005 In
Case Material Plastic Case
Individual or Set Set
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 4 In
Resolution or Graduation .00005 In
Spindle Face Flat
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
