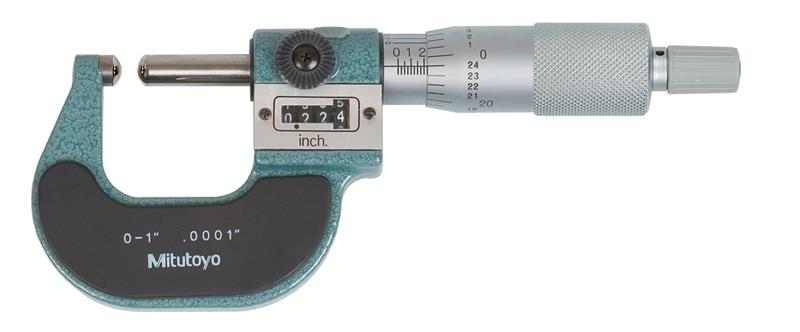

0-1 Inch, 0.0001 Inch, Digit Counter Spherical Face Micrometer, Carbide Steel Tip, Spherical Anvil Spherical Spindle, 0.40 In Max Inside Diameter, Ratchet Stop

  • Item Code: 295-253
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provided with a digit counter.
    • With ratchet Stop for constant force.

Tech Specs

Back To Top
Contact Point Diameter Special
Spindle Face Spherical
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.00015 In
Individual or Set Individual
Finish Enamel
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Case Part Number 453161
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Lock N
