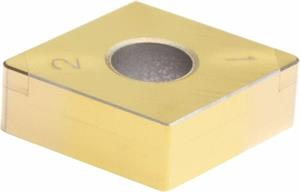

CNGA432 BNC200 Grade PCBN Turning Insert

  • Item Code: 2NCCNGA432HS BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Brand Sumitomo
Material PCBN
Max Depth of Cut 0.0150 Inch
Applicable Materials Hardened Steel, Cast Iron
Coating/Finish Coated
Included Angle 80
Insert Size 432
Insert Style CNGA
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0313 Inch
Grade BNC200
Number of Edges 4
Thickness 0.1875 Inch
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Shape Diamond
