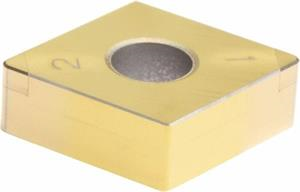

CNGA433 BNC300 Grade PCBN Turning Insert

  • Item Code: 2NCCNGA433HS-BNC300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Grade BNC300
Material PCBN
Included Angle 80
Insert Size 433
Applicable Materials Hardened Steel, Cast Iron
Brand Sumitomo
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Insert Style CNGA
Relief Angle 0 Degree
Chipbreaker Type Coated Mini Tip
Max Depth of Cut 0.0150 Inch
Number of Edges 4
Shape Diamond
Insert Type Negative
Product Name Turning Insert
