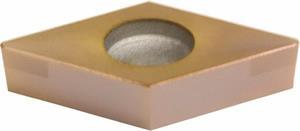

DCGA32.52 LS BNC100 Grade PCBN Turning Insert

  • Item Code: 2NCDCGA32.52LS BNC100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Insert Style DCGA
Brand Sumitomo
Included Angle 55
Inscribed Circle 0.3750 Inch
Material PCBN
Rake Angle 7 Degree
Relief Angle 7 Degree
Coating/Finish Coated
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0313 Inch
Max Depth of Cut 0.0150 Inch
Number of Edges 4
Shape Diamond
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Insert Size 32.52
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Grade BNC100
Insert Type Positive
Thickness 0.0156 Inch
