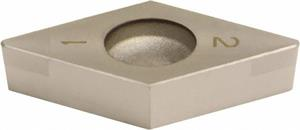

DCGA32.52 LS BNC200 Grade PCBN Turning Insert

  • Item Code: 2NCDCGA32.52LS BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Chipbreaker Type Coated Mini Tip
Relief Angle 7 Degree
Grade BNC200
Insert Style DCGA
Insert Type Positive
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Material PCBN
Corner Radius 0.0313 Inch
Max Depth of Cut 0.0150 Inch
Thickness 0.0156 Inch
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Insert Size 32.52
Rake Angle 7 Degree
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Product Name Turning Insert
Coating/Finish Coated
Included Angle 55
