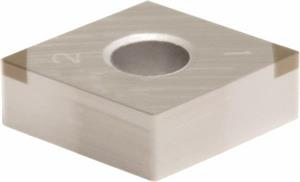

CNGA432 BN2000 Grade PCBN Turning Insert

  • Item Code: 2NUCNGA432HS BN2000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Brand Sumitomo
Chipbreaker Type Multi-Mini Tip
Max Depth of Cut 0.0150 Inch
Coating/Finish None
Inscribed Circle 0.5000 Inch
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Thickness 0.1875 Inch
Shape Diamond
Insert Size 432
Insert Style CNGA
Insert Type Negative
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Grade BN2000
Number of Edges 4
Product Name Turning Insert
Included Angle 80
