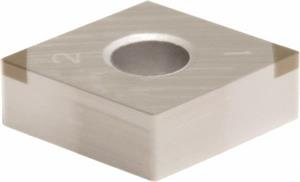

CNGA432 BN350 Grade PCBN Turning Insert

  • Item Code: 2NUCNGA432W BN350
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Grade BN350
Chipbreaker Type Multi-Mini Tip
Insert Size 432
Insert Style CNGA
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Included Angle 80
Max Depth of Cut 0.0150 Inch
Number of Edges 4
Shape Diamond
Coating/Finish None
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Brand Sumitomo
Product Name Turning Insert
