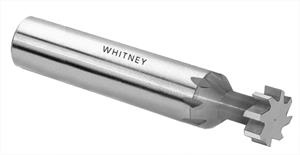

3/16 in. x 1/32 in. Uncoated Small Solid Carbide Keyseat Cutter

  • Item Code: 30306-WHITNEY
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
UPC 648672303069
Number of Teeth 6
Brand Whitney Tool
Fractional Diameter 3/16"
Metric Diameter 4.76 mm
Shank Diameter 1/4"
Shank Type Straight
Cut Width 1/32"
Neck Diameter 0.09375
Coating/Finish None
Tooth Configuration Straight
OD Tolerance 0.002"
Width Tolerance +0", -0.0005"
Material C2 Micrograin Carbide
Shank Diameter Tolerance +0", -0.0005"
Overall Length (Inch) 2"
