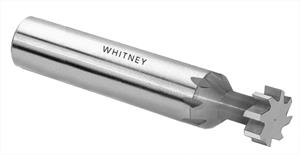

3/16 in. x 3/64 in. Uncoated Small Solid Carbide Keyseat Cutter

  • Item Code: 30308-WHITNEY
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
UPC 648672303083
Shank Type Straight
OD Tolerance 0.002"
Brand Whitney Tool
Cut Width 3/64"
Metric Diameter 4.76 mm
Coating/Finish None
Shank Diameter 1/4"
Tooth Configuration Straight
Width Tolerance +0", -0.0005"
Neck Diameter 0.09375
Overall Length (Inch) 2"
Shank Diameter Tolerance +0", -0.0005"
Fractional Diameter 3/16"
Material C2 Micrograin Carbide
Number of Teeth 6
