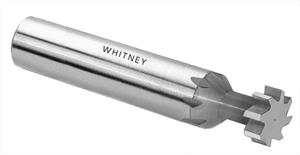

1/4 in. x 1mm Uncoated Small Solid Carbide Keyseat Cutter
- Item Code: 30312-WHITNEY
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Small Solid Carbide Keyseat Cutters
Straight Tooth
Made in USA
Features
Back To Top- Smaller than Standard Sizes
- CNC Precision
- C2 Micrograin Standard
Tech Specs
Back To Top| Cut Width | 0.0394" |
|---|---|
| UPC | 648672303120 |
| Fractional Diameter | 1/4" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Shank Type | Straight |
| Neck Diameter | 0.125 |
| Number of Teeth | 8 |
| Coating/Finish | None |
| Metric Diameter | 6.35 mm |
| Shank Diameter | 1/4" |
| Tooth Configuration | Straight |
| Overall Length (Inch) | 2" |
| Brand | Whitney Tool |
| Material | C2 Micrograin Carbide |
| Width Tolerance | +0", -0.0005" |
| OD Tolerance | 0.002" |
