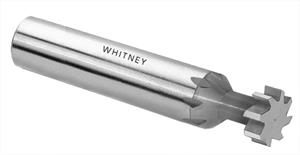

5/16 in. x 2mm Uncoated Small Solid Carbide Keyseat Cutter
- Item Code: 30320-WHITNEY
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Small Solid Carbide Keyseat Cutters
Straight Tooth
Made in USA
Features
Back To Top- Smaller than Standard Sizes
- CNC Precision
- C2 Micrograin Standard
Tech Specs
Back To Top| Cut Width | 0.0787" |
|---|---|
| UPC | 648672303205 |
| Neck Diameter | 0.15625 |
| Width Tolerance | +0", -0.0005" |
| Fractional Diameter | 5/16" |
| Brand | Whitney Tool |
| OD Tolerance | 0.002" |
| Shank Type | Straight |
| Metric Diameter | 7.94 mm |
| Number of Teeth | 8 |
| Overall Length (Inch) | 2" |
| Coating/Finish | None |
| Material | C2 Micrograin Carbide |
| Shank Diameter | 3/8" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
