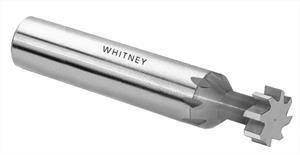

5/16 in. x 3/32 in. Uncoated Small Solid Carbide Keyseat Cutter

  • Item Code: 30321-WHITNEY
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
UPC 648672303212
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
Coating/Finish None
Material C2 Micrograin Carbide
Fractional Diameter 5/16"
Metric Diameter 7.94 mm
Number of Teeth 8
OD Tolerance 0.002"
Width Tolerance +0", -0.0005"
Brand Whitney Tool
Cut Width 3/32"
Shank Type Straight
Neck Diameter 0.15625
Overall Length (Inch) 2"
