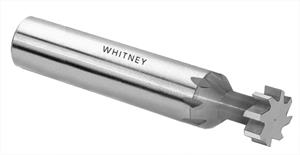

3/8 in. x 1/16 in. Uncoated Small Solid Carbide Keyseat Cutter

  • Item Code: 30326
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
Neck Diameter 0.1875
UPC 648672303267
Shank Diameter Tolerance +0", -0.0005"
Width Tolerance +0", -0.0005"
Overall Length (Inch) 2"
Cut Width 1/16"
Material C2 Micrograin Carbide
Metric Diameter 9.53 mm
Brand Whitney Tool
Fractional Diameter 3/8"
Number of Teeth 8
OD Tolerance 0.002"
Shank Diameter 3/8"
Tooth Configuration Straight
Coating/Finish None
Shank Type Straight
