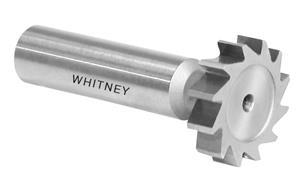

5/8 in. x 5/32 in. Uncoated Solid Carbide Head #505 (6) Keyseat Milling Cutter

  • Item Code: 30335-WHITNEY
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Solid Carbide Keyseat Cutters - Carbide Head on Steel Shank

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • 1/2" Dia. Shank
    • 2" Under Head Length

Tech Specs

Back To Top
UPC 648672303359
OD Tolerance +0.010", +0.015"
Old Standard # 6
Number of Teeth 10
Brand Whitney Tool
American Standard # 505
Cut Width 5/32"
Fractional Diameter 5/8"
Shank Diameter 1/2"
Tooth Configuration Straight
Metric Diameter 15.88 mm
Shank Type Straight
Overall Length (Inch) 2-5/32"
Shank Diameter Tolerance +0", -0.0005"
Width Tolerance +0", -0.0005"
Coating/Finish None
Neck Diameter 0.281
Shank Length 2
